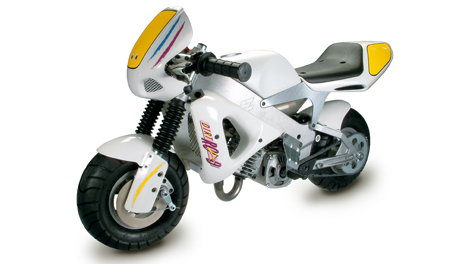

910 Dirtroad SPECIFICATIONS |
|
PRODUCTION PERIOD |
1992 - 2003 |
ENGINE TYPE |
two stroke monocylinder |
COOLING |
air cooled |
BORE AND STROKE |
36 x 39 mm |
DISPLACEMENT |
39.69 cc |
COMPRESSION RATIO |
14.2:1 / 16.2:1 |
AVAILABLE HP |
4.2 and 6.2 HP |
CARBURETOR |
(DELL'ORTO) SHA 14 - 14L |
IGNITION |
|
FUEL |
premium gas / 2% oil premix |
INTAKE |
reed valve in the crankcase |
STARTING |
pull start with self winding cable |
CLUTCH |
dry with centrifugal counter weights |
FRAME |
light alloy die-cast frame with double diagonal bar |
FRONT BRAKE |
122 mm |
REAR BRAKE |
122 mm |
FRONT TIRE |
90/80 - R5 |
REAR TIRE |
90/80 - R5 |
FRONT WHEEL |
5" SPLIT RIM |
REAR WHEEL |
5" SPLIT RIM |
TANK |
1.8 Liters |
SPARK PLUG |
CHAMPION N2C |
WEIGHT |
19.2 Kg |
LENGTH |
965 mm |
WIDTH |
250 mm |
SEAT HEIGHT |
380 mm |
